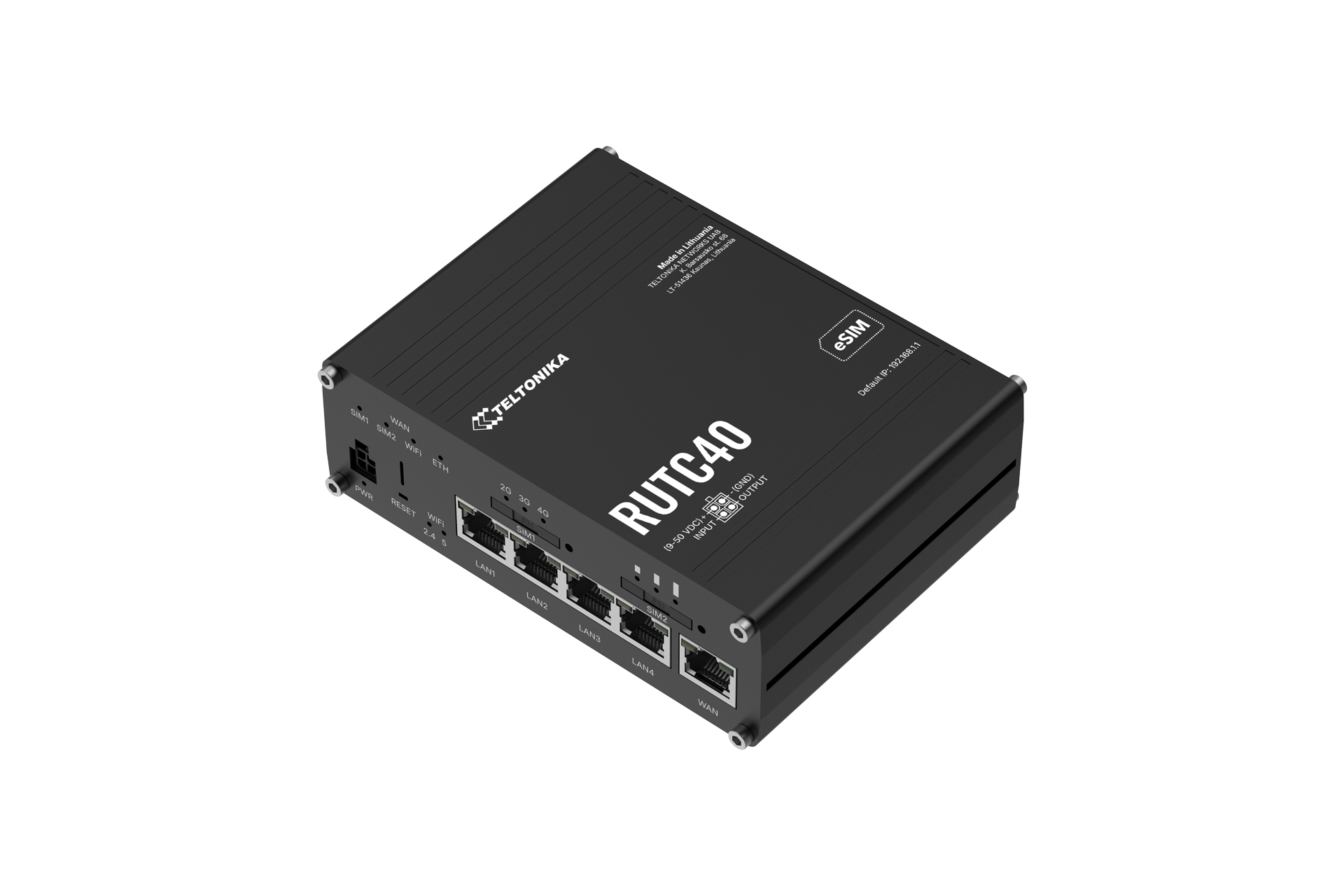

¶ RUTC Series
RUTC series devices are high-speed industrial Gigabit Ethernet routers powered by a ARM Cortex A53 CPU. Built on RutOS, an OpenWrt-based Linux operating system, they are designed for demanding professional applications requiring robust security, extensive VPN support, and high-performance WiFi 6 connectivity. Their full aluminum housing and wide operating temperature range make them ideal for industrial deployments where reliability in extreme environments is essential.
¶ Specifications
| Platform | Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 | |
| Memory / Storage | 1 GB, DDR4 RAM 16 MB serial NOR flash, 8 GB eMMC Flash |
|
| Wireless | 802.11b/g/n/ac/ax | |
| Interfaces | 1 x WAN port (10/100/1000 Mbps) 4 x LAN ports (10/100/1000 Mbps) 1 x USB A 2.0 port 1 x Digital Input and 1 x Digital Output (on power connector) |
|
| Buttons / Switches | Factory reset button | |
| Power Input | 9 – 50 VDC (4-pin industrial DC socket) Passive PoE support through LAN port |
|
| Power Consumption | Idle: < 5.6 W, Max: < 24 W | |
| Operating Temperature | -40 °C to 65 °C | |
| Dimensions / Weight | 130.4 x 42.6 x 104 mm 480g |
|
| Downloads | MeshmerizeOS Upgrade Image | |
¶ Installation
1. Download the MeshmerizeOS Image.
2. Follow the instructions in the Teltonika user guide for initially connecting to the device (go to the datasheet link).
3. In the web UI, go to System> Firmware> Update Firmware.
4. Then in the “Flash new firmware image” section, select “File” and click Browse to upload the downloaded MeshmerizeOS image. (Turn off the “keep settings” option for the first installation)
5. After the image file is successfully uploaded there will be a pop up page, confirm the firmware update with the button “Proceed”.
¶ Getting Started
With the Meshmerize image installed you will find a dedicated Meshmerize page in the main menu of the WebUI. This page contains the license management as well as basic configuration for Meshmerize and Hive.
Upload a valid license file in the License section to enable all the features of Meshmerize. The license status will reflect the current state of the installed license.
MeshmerizeOS comes up with two standard mesh interfaces configured on the 2.4 GHz and 5 GHz radio frequencies. In the Meshmerize section of the Meshmerize page, the device can also be configure different routing settings and stream length easily through the Web UI. To fully enable configuration through Hive enter your Hive details in the Hive-Worker section configuration. Follow this Hive Activation Guide link for detailed instructions.
